How to Setup Your Own Hotspot with MIKROTIK routers


You need to setup your Mikrotik router by using Winbox. Winbox is the graphical user interface for configuring the Mikrotik Router OS. You can get Winbox via The Dude. Once installed, click on Discover. Once the devices are discovered and displayed, you can right click on the Router OS select tools then select Winbox.
1. First we need to define the first port for WAN connection so the router will connect to the internet via another router with DHCP.
In winbox click IP > DHCP Client and Add DHCP Client to port ether1


2. Let's add the hotspot service to wlan Click IP > HotSpot and the Setup box, choose wlan1 as hotspot interface. You can accept default values but choose none for certificate. Leave the IP as it is (10.5.50.x). If you change this IP, the LOGIN and LOGOUT links will not work on your splash page.
3. You need to add our radius server as authentication and accounting server.
In the hotspot profiles (IP > HotSpot > Profiles) choose your hotspot profile and allow radius in the radius tab, de-select cookie, allow http pap and chap.

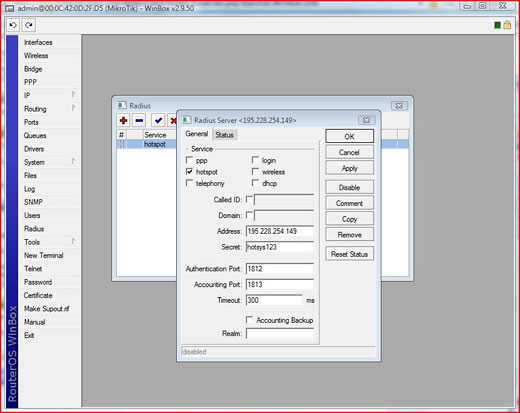

4. You need to define our radius server. Click Radius and the + sign to add our radius server.
Click Servies > Hotspot, enter radius address: 195.228.254.149, Secret: hotsys123
5. You need to add the secondary radius server. Click Radius and the + sign.
Click Servies > Hotspot, enter radius address: 85.25.152.132, Secret: hotsys123 and check the 'Accounting Backup' checkbox.
6. We have to allow certain sites and servers for non authenticated users otherwise they can't buy access.
In the section IP > HotSpot > Walled Garden, click on + sign and add the following domains to Dst. Host one by one:
*.hotspotsystem.com
*.worldpay.com
*.paypal.com
*.paypalobjects.com
*.akamaiedge.net
paypal.112.2O7.net
*.moneybookers.com
*.adyen.com
Then in the section IP > HotSpot > Walled Garden > IP List add the following IPs to Dst. Address one by one (if your Mikrotik doesn't allow netmask values (.0/24) you can skip the netmask value):
194.149.46.0/24
198.241.128.0/17
66.211.128.0/17
216.113.128.0/17
70.42.128.0/17
128.242.125.0/24
216.52.17.0/24
62.249.232.74
155.136.68.77
66.4.128.0/17
66.211.128.0/17
66.235.128.0/17
88.221.136.146
195.228.254.149
195.228.254.152
203.211.140.157
203.211.150.204
82.199.90.136/29
82.199.90.160/27
91.212.42.0/24
7. You need to syncronize the router's time with our server.
Click on System > NTP Client. Enter primary and secondary NTP servers. To find NTP servers, go to http://www.pool.ntp.org/ and select the location's continent on the right side of the page. You'll find NTP servers there.
Be sure to leave TimeZoneName: manual, and TimeZone: 00:00 in System > Clock. (Don't set your own timezone, because the router has to show the GMT time!)
8. You need to change the router's NASID. The NASID setting in the Mikrotik is located under System > Identity. Default is 'MikroTik'.
Change this the following way: OPERATORUSERNAME_LOCATIONNUMBER
Example: Operator Username is 'globalhotspot', Location ID: '2', then NASID should be: 'globalhotspot_2'
9. You have to customize Mikrotik's built-in login page. On the side menu go to Files, and find the login.html file under the 'hotspot' directory. Double click on the file and choose Backup.
Open a simple text editor like notepad and copy and paste the following to the editor:
Save it as login.html to your Desktop.
Drag and drop this login.html to your "hotspot" directory in the Winbox program.
If you wish to use FTP you can FTP to your mikrotik router with the admin userid and password and replace the file there under the 'hotspot' directory.
If you don't wish to redirect users to our nice splash page you can continue to use the router's built-in login page but in this case it is important to add a link to the internal page where your users can buy access or activate their prepaid cards. Click here for more information.
10. You have to set the Login/Logout URL IP addresses in the Control Center. Log in to the Control Center with your Operator Username and password and go to Manage > Locations. Click on the location, then click on Modify Hotspot Data & Settings. In Splash Page Settings modify the Internal Login/Logout URL Set to Mikrotik. Make sure that 'Display Login Box on Main Splash Page' option is CHECKED.

11. As the last step you have to add hourly checking for up status for the Router Alert feature.
Go to System > Scheduler and add a new task by pressing the plus sign.
Name: up
Interval: 01:00:00
On Event:


Policy: enable all
Press Apply and OK.
That's all. You can setup hotspot service even on a wired connection. In this case you have to choose an ethernet port instead of wlan or you can setup hotspot on both ports.
If you have successfully setup your mikrotik router you have to see a login window when connecting via wireless. You can log in with username admin, blank password.

ORIFICE APPARATUS (HOR-01)

Percobaan yang dapat dilakukan:

1. Menentukan koefisien kecepatan yaitu: perbandingan antara kecepatan pancaran dari vena kontrakta dengan kecepatan teoritis melalui lubang.

2. Menentukan koefisien debit yaitu: perbandingan debit sebenarnya dengan debit teoritis dari bermacam – macam lubang orifice, dengan pengamatan debit untuk berbagai harga tinggi tekan.

Spesifikasi teknik:

- Hydrolic bench : stainless plate

- Orice diameter : 5, 6 dan 8 mm

- Dimension : 80x60x150 cm

- Weight : approx. 75 kg



EKSPEDISI & LOGISTIK

BALANCING MACHINE

Mesin ini dirancang untuk praktikum/percobaan dan penelitian yang bertujuan:




  1. Mengamati gaya kocak yang merupakan efek dari gaya – gaya inersia pada suatu himpunan rotor.
  2. Menyeimbangkan gaya – gaya inersia yang dalam keadaan tak seimbang baik statis maupun dinamis.

sEfek gaya inersia pada suatu masa yang berputar akan menimbulkan gaya kocak (shaking force) pada struktur. Karena gaya kocak ini harus dihindari atau dieliminir sekecil mungkin maka harus ada cara menyeimbangkan secara keseluruhan atau sebagian gaya gaya inersia tersebut dengan menambah gaya gaya inersia tambahan yang membantu untuk melawan efek gaya – gaya inersia semula.

Salah satu contoh penerapan penyeimbangan gaya – gaya inersia tersebut adalah pada ‘Balancing Machine’ yang terdiri dari himpunan rotor – rotor yang diletakan diatas rangka yang dibuat dapat berayun (lihat gambar diatas).

Spesifikasi Teknik:

  1. Rangka penunjang ayunan (portable)
  2. Motor penggerak dengan variable speed
  3. Tranduser amplitudo dari osilasi ayunan
  4. Lima buah rotor termasuk dua buah rotor koreksi
  5. Stroboskop dengan beberapa frekwensi
  6. Panel kontrol power supply dan display
  7. Satu set beban massa (8, 12, 16, 20, 25 dan 30 gram).
  8. Power supply: 220 VAC/0.25 kW.
  9. Dimensi : 100 x 40 x 40 cm
  10. Berat : (approx.) 120 kg



EKSPEDISI & LOGISTIK

CRUSSIBLE FURNACE (untuk Laboratorium Pengecoran Logam)

Crussible Furnace (Dapur Krus) digunakan untuk peleburan logam non-ferro (paduan aluminium atau tembaga). Fungsi utamanya adalah menyediakan logam cair dengan kualitas dan temperatur yang diinginkan.

Dapur ini menggunakan energi listrik sehingga logam cair yang dihasilkan dalam kondisi yang bersih serta mudah dalam mengontrol temperaturnya.

Konstruksi dapur terdiri dari cawan lebur yang terletak ditengah – tengah frame/bodi terbuat dari baja yang dilapisi bata isolasi tahan api dan penyekat panas. Terdapat ruang pemanas diantara cawan pelebur dan dinding penyekat panas.

Paket dapur pelebur ini dilengkapi dengan peralatan – peralatan penunjang untuk praktikum pengecoran logam antara lain: pasir cor untuk pembuatan cetakan, peralatan penuangan, cetakan permanen (dari baja) dan beberapa macam ukuran rangka cetak.

Spesifikasi Teknik:

1. Cawan lebur : Morganite crussible

2. Kapasitas peleburan : 20 kg Aluminium / 1-2 jam

60 kg paduan tembaga / 2 – 2.5 jam

3. Unit pembangkit panas : Elektrik 16.5 kW, 3 phase 380 Volt

4. Rangka/bodi crussible : Baja

5. Penyekat panas : Bata isolasi dan ceramic fiber

6. Kontrol temperatur : PID digital temperature controller

7. Sensor temperatur : Thermocouple type-s

8. Dimensi : 800 x 800 x 900 mm

9. B e r a t : Approx. 350 kg
